How to Align Garage Door Sensors

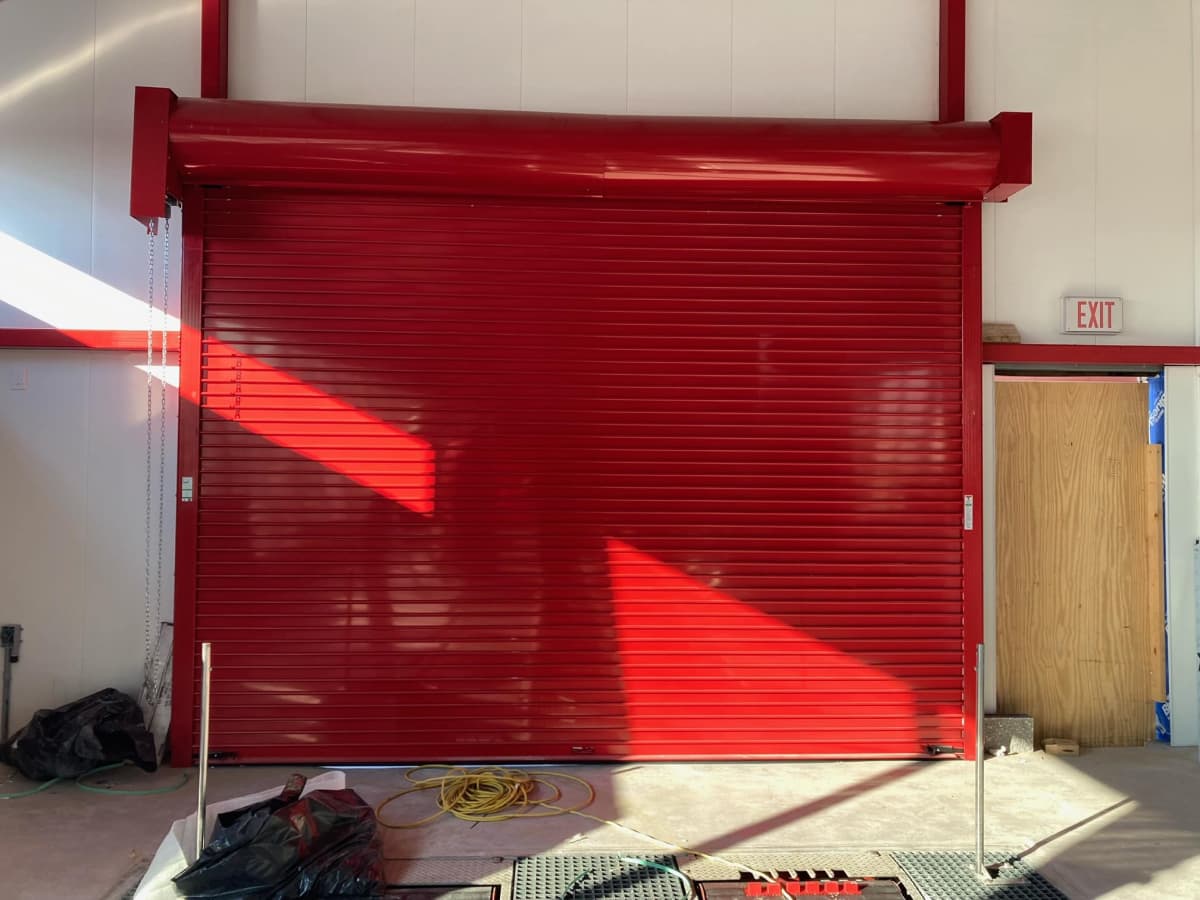

garage door with sensor

Ensuring the proper alignment of your garage door sensors is crucial for the safety and efficiency of your commercial garage doors. These sensors play a vital role in preventing accidents and injuries by stopping the door from closing if an object or person is in its path. However, sensors may need to be more aligned over time due to various factors, such as physical impact or natural wear and tear, leading to common garage door issues. This guide will walk you through the steps to align garage door sensors, ensuring your garage doors operate safely and effectively. For more information on our commercial garage door services, visit our commercial garage door page.

What Are Garage Door Sensors?

Garage door sensors are safety devices that prevent the door from closing on objects, vehicles, or people. They consist of two units placed on either side of the door at about six inches above the ground. One sensor sends a signal, while the other receives it. If the path between these sensors is interrupted, the door will automatically reverse to prevent potential harm or damage. These sensors are a safety requirement and a critical component for the functionality of automatic doors. Understanding the role and importance of these sensors is the first step in maintaining the operational integrity of your commercial garage doors. Explore our offerings in commercial garage door repair and installation services for a broader range of our safety and operational enhancements for commercial settings.

Common Signs of Misaligned Garage Door Sensors

Recognizing the signs of misaligned garage door sensors early can save you from more significant problems. Here are a few indicators that your sensors might need attention:

  • Difficulty Closing the Garage Door: If your garage door refuses to close or stops and reverses direction for no apparent reason, it could be due to misaligned sensors.
  • Garage Door Reverses Before Hitting the Ground: This is a classic symptom of sensor misalignment. The door begins to close but reverses before it can fully close.
  • Blinking Lights on the Sensor Unit: Most garage door sensors have indicator lights that blink when misalignment occurs.
  • Garage Door Operates Sporadically: Inconsistent operation can also indicateindicate that your sensors are not correctly aligned.

Early detection and correction of these issues can prevent accidents and ensure your garage door operates smoothly. Consider our garage door repair services for more complex matters or professional assistance.

Tools and Materials Needed for Alignment

Before you begin the alignment process, make sure you have the following tools and materials ready:

  • Phillips and flathead screwdrivers
  • Wrench set
  • Measuring tape or ruler
  • A level
  • Clean cloth
  • Mild cleaning solution

Having the right tools will make the alignment process smoother and more efficient. Safety is paramount, so always ensure the garage door is disconnected from the power source before attempting any adjustments. Our commercial garage door installation page offers comprehensive solutions for installations and more technical repairs.

Step-by-Step Guide to Aligning Garage Door Sensors

Aligning your garage door sensors is a straightforward process that can greatly improve the functionality of your door. Follow these steps to ensure correct alignment:

  1. Safety First: Disconnect the power to your garage door opener to prevent accidental activation during the alignment process.
  2. Locating the Sensors: Identify the transmitter and receiver sensors, usually installed near the bottom of the garage door frame.
  3. Adjustment Process: Loosen the screws or bolts that hold the sensor brackets in place just enough so you can adjust their position but not so much that they can move freely or fall off.
  4. Aligning the Sensors: Slide the sensors up, down, or sideways, using a level to ensure they both point directly at each other across the width of the door. The lights on both sensors should be solid, indicating proper alignment.
  5. Testing for Alignment: Block the beam between the sensors with an object to test if the garage door reverses. If it does, the sensors are aligned correctly.
  6. Securing the Sensors: Once aligned, tighten the screws or bolts on the sensor brackets to secure them in place.
  7. Final Testing: Reconnect the power to your garage door opener and test the door several times to ensure it operates smoothly without any issues.

If you have any questions or would prefer a professional to handle the adjustments, our team is always ready to help. Visit our contact page to contact us.

Troubleshooting Common Problems After Alignment

Even after aligning the sensors, you might encounter some issues. Here are tips for troubleshooting common problems:

  • Garage Door Still Won't Close: Check for any obstructions or dirt on the sensor lenses. Clean them gently with a soft cloth and mild cleaner.
  • Sensors Appear Aligned, but Door Reverses: Ensure the sensors are aligned horizontally and vertically. A slight tilt can cause malfunction.
  • No Lights on One or Both Sensors: This could indicate a wiring problem or a faulty sensor. Double-check the wiring connections, and if the issue persists, consider replacing the sensors.

If you're facing persistent issues with your garage door sensors, it might be time to seek professional help. For expert assistance, visit our commercial garage door repair page.

Maintenance Tips to Prevent Future Misalignments

garage door maintenace

Regular maintenance can prevent sensor misalignments and extend the life of your garage door system. Here are a few tips:

  • Regular Cleaning: Keep the sensor lenses clean from dust and debris. Use a soft cloth and mild cleaner to wipe them gently.
  • Periodic Checks: Regularly check the alignment of your sensors. A simple check every few months can prevent significant issues.
  • Professional Inspections: Schedule annual inspections with a professional to ensure all parts of your garage door system are in good working order. For more details on maintenance services, check our service locations page.

Coming Full Circle on Garage Door Sensor Alignment

Proper sensor alignment is essential for the safety and efficiency of your garage door system. Following the step-by-step guide, you can ensure your sensors are correctly aligned, and your garage door operates safely. Remember, regular maintenance and professional inspections are crucial to avoiding future misalignments and ensuring the longevity of your garage door system.

For any garage door installation, repair, or maintenance needs, our team of experts is here to help. From automatic doors to fire-rated doors, we have the knowledge and experience to ensure your garage door system operates smoothly and safely. Contact us today via our contact page to schedule a service or to learn more about our wide range of commercial garage door solutions. Don't forget to subscribe to our blog for more DIY guides, tips, and updates on our services.
